If you’re exploring 5 axis trimming, you’re unlocking a world of precision manufacturing that can transform your projects. But what makes 5-axis CNC trimming so effective for complex shapes and tight tolerances? It’s all about moving beyond traditional machining limits to achieve flawless finishes and intricate geometries in a single setup. Whether you’re in aerospace, automotive, or medical device production, understanding how 5 axis trimming works—and why it’s essential—can make all the difference. Keep reading to discover how this advanced technology can elevate your manufacturing process and why partnering with experts like MS Machining ensures your success.

Introduction: What is 5 Axis Trimming?

In today’s fast-paced manufacturing world, achieving high precision while maintaining efficiency is essential. That’s where 5 axis trimming comes into play. But what exactly is it?

5-axis CNC trimming is a advanced machining process that uses multi-axis cutting technology to shape and finish complex parts with incredible accuracy. Unlike traditional 3-axis machining, which moves in straight lines along three primary axes, 5 axis CNC machining adds two additional rotational axes, allowing the cutting tool to approach parts from virtually any angle. This capability makes CNC 5 axis trimming ideal for producing intricate geometries, undercuts, and fine finishes with fewer setups.

The importance of high precision CNC trimming cannot be overstated in modern manufacturing. Industries such as aerospace, medical devices, automotive, and mold-making demand parts that meet strict tolerances and surface finish standards. Advanced CNC trimming offers the accuracy, speed, and flexibility needed for these demanding applications.

At MS Machining, we pride ourselves on providing leading 5-axis trimming services. With state-of-the-art equipment and skilled operators, we deliver high-precision CNC trimming solutions tailored to your specific project needs. Whether you’re working with composites, metals, or plastics, our 5 axis trimming solutions are designed to help you achieve the best quality while reducing production time and costs. Reach out today to see how our expertise can support your next project!

Why 5 Axis Trimming is Crucial for Industry

The demand for 5 axis trimming is continuously growing across many industries due to its ability to handle complex and multi-angle parts with high precision. Industries like aerospace, automotive, medical, and mold-making benefit significantly from advanced CNC trimming solutions. These sectors are increasingly producing designs that require cutting at multiple angles in a single setup, which traditional 3-axis machines can’t efficiently achieve.

In aerospace, for instance, trimming composites for aircraft parts demands precision and intricate angles for safety and performance. Automotive manufacturers rely on high-precision 5 axis machining services to create complex molds and prototypes faster and more accurately. The medical sector uses CNC 5 axis trimming to produce surgical tools and implants with tight tolerances, ensuring quality and safety. Similarly, mold-making involves refining detailed molds with smooth finishes, which is only possible with multi-axis trimming technology.

The growth in the complexity of parts—especially those with undercuts, curves, or intricate geometries—makes 5-axis machining essential. As manufacturers push for better product performance and quicker turnaround times, the industry’s reliance on efficient, multi-angle trimming continues to increase. This trend drives demand for advanced CNC 5 axis trimming, making it a key part of modern manufacturing strategies.

Understanding 5 Axis Trimming Technology

How 5-axis CNC Machines Operate

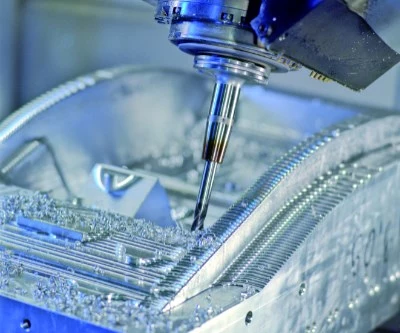

5-axis CNC machines use advanced cutting technology that allows tools to move along five different axes simultaneously. This capability makes it possible to trim complex shapes and detailed features in a single setup, saving time and improving precision. The machine’s spindle rotates and tilts, enabling high-precision cuts from multiple angles without repositioning the material.

Difference Between 3-axis, 4-axis, and 5-axis Trimming

Axis Type	Movement Capabilities	Typical Uses
3-axis	Moves in X, Y, Z directions	Basic shaping, drilling
4-axis	Adds rotation around one axis	Symmetrical parts, simple contours
5-axis	Combines X, Y, Z with two rotary axes	Complex geometries, undercuts, multi-angle trimming

5-axis trimming stands out by providing the flexibility to machine intricate parts in a single process, which reduces setup times and increases accuracy.

Essential Components of a 5-axis Trimming Machine

• Spindle: Holds the cutting tool and rotates at high speeds for precision trimming.

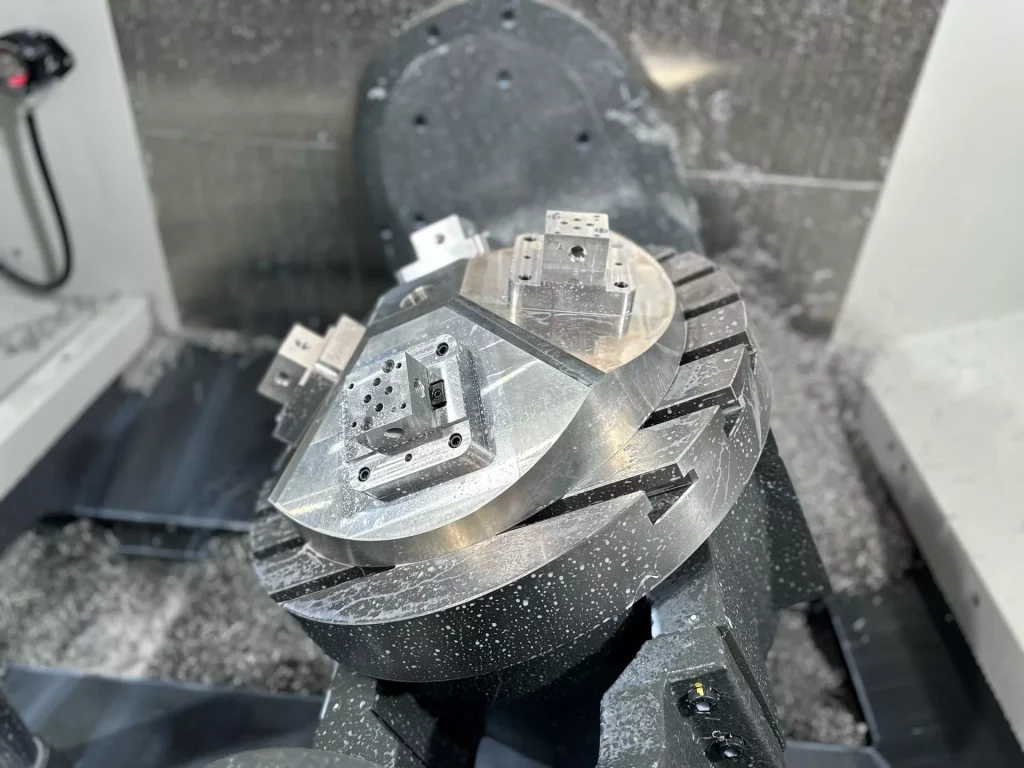

• Rotary Axes: Allows tilting and turning of the tool or workpiece for multi-angle cuts.
• Software: Controls the motion, schedules machining paths, and ensures precision.

Materials Suitable for 5-axis Trimming & Challenges

Many materials can be trimmed using 5-axis CNC machines, including composites, metals, plastics, and mold materials. Each material presents specific challenges:

• Composites: Require careful tool selection to prevent delamination.
• Metals: Need high-speed spindles and cooling.

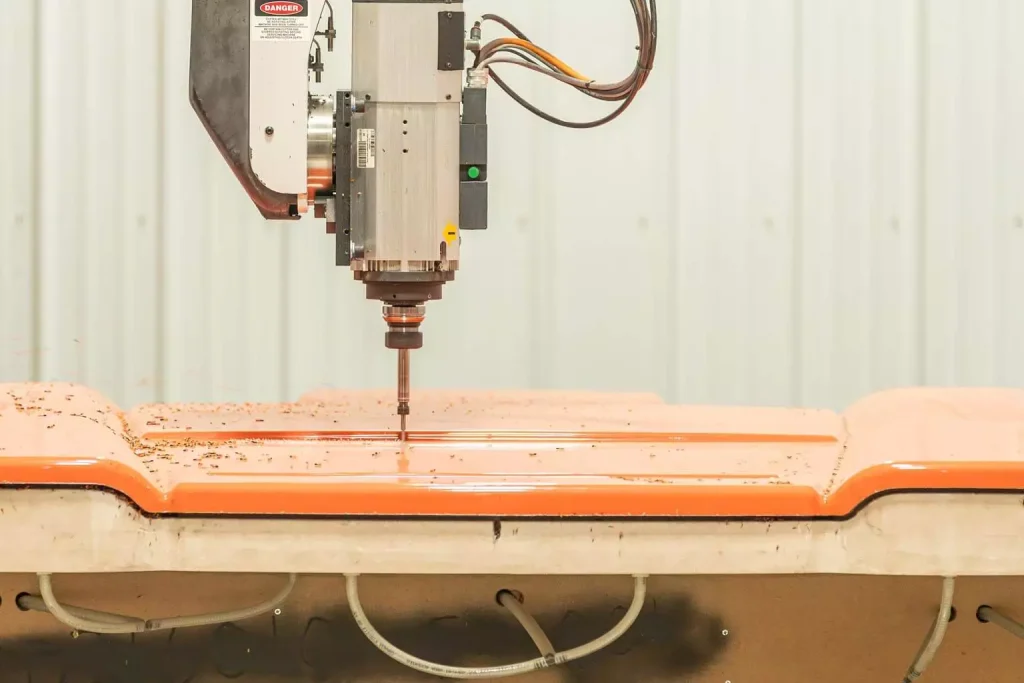

• Plastics: Can melt if not trimmed properly.

To achieve optimum results, advanced CNC trimming requires understanding material properties and using specialized tools for high-precision CNC trimming. If you’re working with complex materials, exploring options like aluminum CNC machining parts can help.

Benefits of 5 Axis Trimming in Manufacturing Processes

Using 5 axis CNC machining for trimming offers clear advantages over traditional methods.

Exceptional precision and detail:
With 5-axis trimming, we can achieve high-precision results with complex shapes and tight tolerances. This is essential for industries like aerospace and medical where quality matters.

Increased efficiency with single setup:
Instead of multiple machine adjusts, everything can be done in one setup. This reduces production time and minimizes errors. For example, our 5-axis trimming services streamline the process and save valuable time.

Ability to handle complex geometries and undercuts:
Multi-angle trimming makes it possible to create intricate parts with undercuts and detailed surfaces that would be impossible or tedious with less advanced CNC trimming.

Cost savings:
Reducing waste and cutting down on multiple setups means lower overall costs. Faster turnaround times let you get products to market quicker and more affordably.

In short, 5-axis trimming boosts manufacturing quality while lowering costs, making it a smart choice for high-precision industries.

Applications of 5 Axis Trimming Across Sectors

5 axis trimming plays a vital role across many industries, thanks to its ability to handle complex, high-precision parts. In aerospace, for example, advanced CNC trimming is used to shape lightweight composite materials for aircraft structures, ensuring they meet strict safety and performance standards. This process helps produce parts with smooth edges and precise dimensions. Learn how CNC composite trimming enhances efficiency in aerospace manufacturing.

In the automotive industry, 5-axis milling is essential for creating accurate molds and prototypes. It allows manufacturers to trim intricate shapes from metal or plastic with high precision, speeding up the development process. This technology is especially useful for producing complex engine components or custom parts.

The medical sector benefits from 5 axis trimming for manufacturing surgical tools and implants. Precise CNC trimming ensures these items meet strict quality and safety standards, providing better patient outcomes. The ability to shape materials like titanium or medical-grade plastics into fine details is crucial here.

Mold-making is another major beneficiary, where 5 axis CNC trimming finishes complex mold surfaces, producing smooth, detailed finishes on plastic and rubber molds. This process helps achieve high-quality finishes faster and with fewer reworks, saving both time and money.

Beyond these, other sectors like marine, energy, and consumer goods also benefit from 5 axis cutting technology. Whether it’s trimming propellers, turbine blades, or customized products, multi-axis trimming offers the versatility needed for complex geometries and high-precision finishing.

Overcoming Challenges in 5 Axis Trimming

While 5 axis CNC machining offers impressive benefits, it comes with some challenges that companies need to address. One major hurdle is the high initial investment costs. Advanced 5 axis trimming machines, especially those used for precision CNC trimming, can be expensive upfront. However, many businesses find that the increased efficiency and accuracy lead to cost savings in the long run through faster production times and reduced waste.

Another challenge is the need for skilled operators and programming expertise. 5 axis milling and CNC 5 axis trimming require specialized knowledge to set up and operate effectively. Proper training ensures that operators can handle complex geometries and optimize machine performance, which is essential for maintaining high-precision 5 axis machining standards.

Finally, maintenance and calibration are ongoing requirements. Regular maintenance helps prevent downtime, extension of equipment lifespan, and consistent quality. Staying on top of calibration ensures that the 5-axis cutting technology performs accurately, especially when working on tight tolerances or intricate parts.

Despite these hurdles, partnering with experienced providers like MS Machining can help mitigate these challenges. We offer comprehensive support, including skilled programming and maintenance services, making sure your 5 axis trimming process runs smoothly and cost-effectively.

Why Choose MS Machining for 5 Axis Trimming?

When it comes to high-precision CNC trimming, MS Machining stands out. Our team has extensive experience in 5-axis trimming, especially for complex parts in aerospace, medical, and automotive sectors. We know what it takes to deliver really accurate results, every time.

Cutting-Edge Equipment and Technology

We invest heavily in the latest 5-axis CNC machining equipment and software. This allows us to handle the most complex shapes with precision CNC trimming, making sure your parts meet tight tolerances. Whether you’re working with composites, metals, or plastics, our advanced CNC trimming solutions can handle it all.

Tailored Solutions for Every Customer

Every project is unique. That’s why we focus on customer-specific trimming solutions. We work with you to understand your needs—be it prototype, small batch, or mass production—delivering the best results for your industry. If you’re looking for reliable 5-axis milling and CNC composite trimming, we can help.

Local Support for Fast Turnaround

Being a local provider means we can respond quickly when you need maintenance or support. Our technicians are always ready to keep your CNC 5 axis trimming equipment running smoothly, reducing downtime and speeding up your production cycle.

Why It Matters

Choosing MS Machining gives you access to high-quality, precision CNC trimming that boosts efficiency and quality in your manufacturing process. Our experience and top-tier tools help you stay competitive while meeting the highest industry standards.

For more about our capabilities, check out our precision CNC milling parts.

Future Trends in 5 Axis Trimming

The future of 5 axis trimming is all about smarter, more efficient machining. We’re already seeing AI and automation being integrated into CNC 5 axis trimming processes, making operations faster and more precise. These advances help create complex parts with less waste and fewer errors—especially important for industries like aerospace and medical device manufacturing where precision matters.

Enhanced software tools are also playing a big role. They enable us to handle more complex geometries, including intricate undercuts, with better accuracy and smoother finishes. Plus, software updates are making it easier for operators to program advanced CNC 5 axis machining, reducing setup time and increasing efficiency.

Sustainability is gaining momentum too. Eco-friendly practices like reducing waste and energy consumption are becoming standard, aligning with the industry’s push toward greener manufacturing solutions. As these trends grow, customers can expect more reliable, high-precision 5 axis trimming services that are not only cutting-edge but also environmentally responsible. If you’re considering new investments, staying ahead with these innovations means you’ll get the most advanced 5 axis machining services and solutions tailored to your needs.

Final Thoughts

In the world of modern manufacturing, 5-axis trimming plays a crucial role in achieving the high precision and complex geometries required across industries like aerospace, automotive, and medical device production. With this advanced CNC trimming technology, manufacturers can produce intricate parts with exceptional accuracy, reduce waste, and speed up production times. Whether you’re working on lightweight composite aircraft components or precise medical implants, 5-axis trimming ensures top-quality results every time.

At MS Machining, we’re committed to supporting your project with our expert 5-axis CNC machining services. Our investment in the latest 5-axis cutting technology and skilled team means you get tailored solutions that meet your unique needs. From prototype to full-scale production, we deliver reliable, high-precision results—helping you stay competitive and meet tight deadlines.

If you’re ready to optimize your manufacturing process with advanced CNC 5 axis trimming, contact us today to see how we can help bring your projects to life with precision and efficiency.

FAQs

What’s the difference between 3-axis and 5-axis trimming?

The main difference is in movement. 3-axis CNC machining moves only along X, Y, and Z axes—good for simple cuts. 5-axis trimming adds rotary axes, allowing the tool to approach complex shapes from multiple angles. This means better precision, complex geometries, and undercuts, making it ideal for intricate parts.

Which industries benefit most from 5-axis trimming?

Many sectors rely on 5-axis cutting technology for precision.

• Aerospace: trimming composites for aircraft parts
• Automotive: mold and prototype trimming with high accuracy
• Medical: manufacturing surgical tools and implants
• Mold-making: finishing complex molds with smooth surfaces
  Other industries, like marine, energy, and consumer goods, also see big benefits from multi-axis trimming.

What are the cost considerations with MS Machining services?

While 5-axis CNC machining involves a higher initial investment, the cost savings come from fewer setups, less waste, and faster turnaround times. We offer competitive pricing on high-precision 5 axis machining and trimming solutions. If you want to compare, our CNC machining solutions can give you a good estimate.

How does MS Machining handle large-scale production?

We leverage advanced CNC 5 axis trimming equipment capable of high-volume runs without sacrificing accuracy. Whether your project needs small prototypes or large batches, our facilities are equipped to meet your demands efficiently.
Check out our 5 axis trimming services to see how we optimize for large production.

How do I get started with MS Machining’s 5-axis trimming solutions?

Getting started is simple:

• Contact us with your project details and specifications
• We’ll review your parts and suggest the best 5 axis cutting technology
• Receive a customized quote
• Once approved, our team handles the rest with precision CNC trimming

Let us help you bring your complex parts to life with the latest 5-axis CNC trimming technology.
