Prototype Molding
T1 Samples in 5-10 Days
MS Machining provides high-tolerance prototype molding services for the medical, robotics, and UAV industries. We leverage in-house CNC machining to deliver functional components in engineering-grade plastics, LSR, and overmolded materials.
Get a 24-Hour Quote & DFM Analysis
Technical Specifications & Manufacturing Capability
Parts machined to your exact CAD specifications and tolerance requirements.

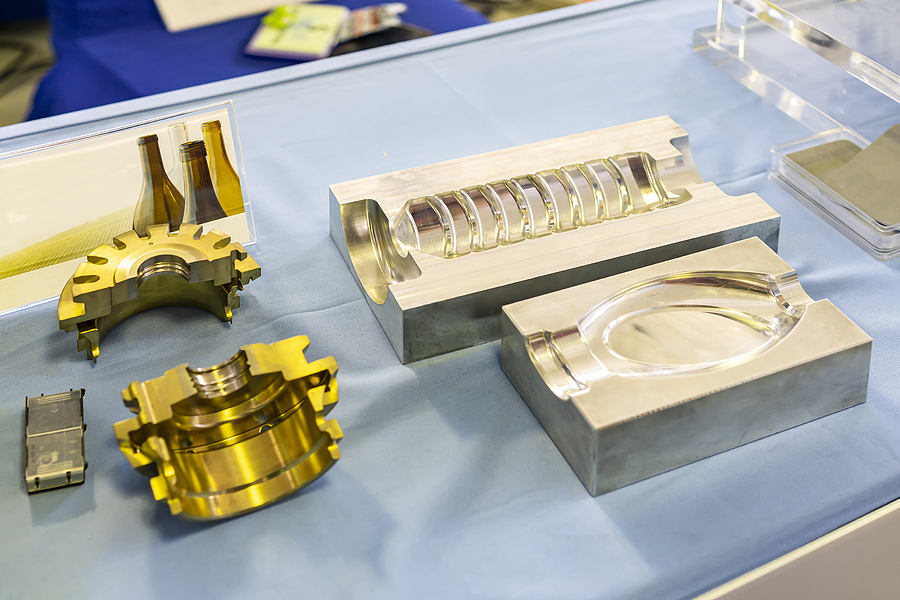

Lead Time & Speed
T1 samples delivered in 5–10 business days.

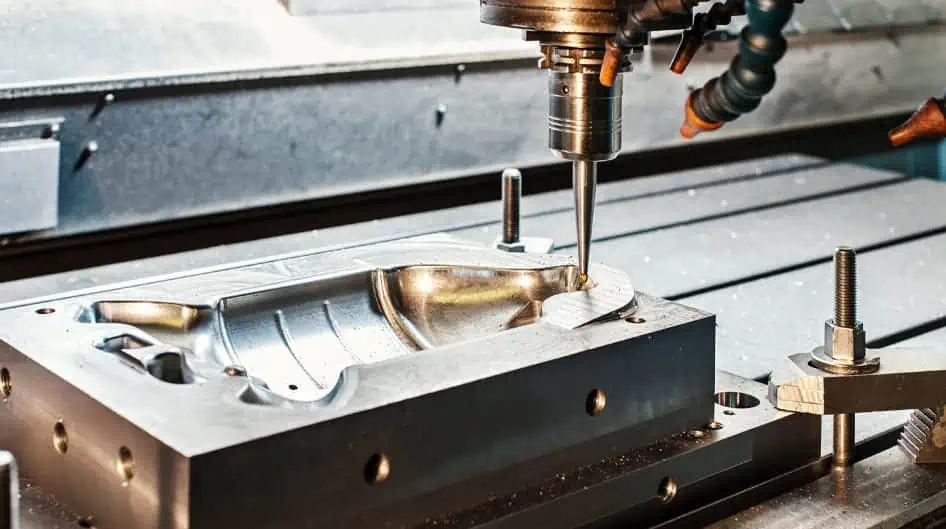

We utilize high-speed CNC machining centers for mold base and cavity fabrication, ensuring your R&D cycle remains ahead of schedule without compromising quality.

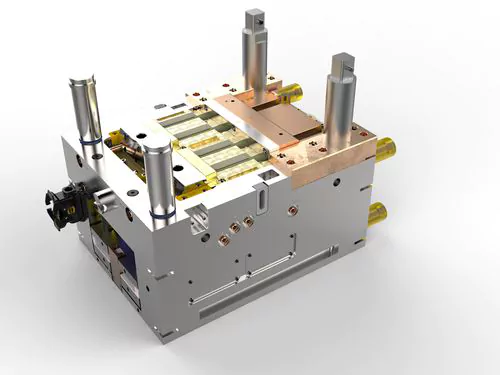

Precision Tolerance
Up to ±0.025 mm (±0.001 in.) *Design dependent*
Critical for medical device housing, robotic joints, and aerospace drone components where fit-and-function are non-negotiable and strictly controlled.
Common & Specialty Resins
ABS, PC, Nylon, PEEK, PBT, POM, TPU, LSR
Direct processing of glass-filled (GF) and carbon-fiber (CF) reinforced resins. Full material traceability and batch-specific records maintained for every project.

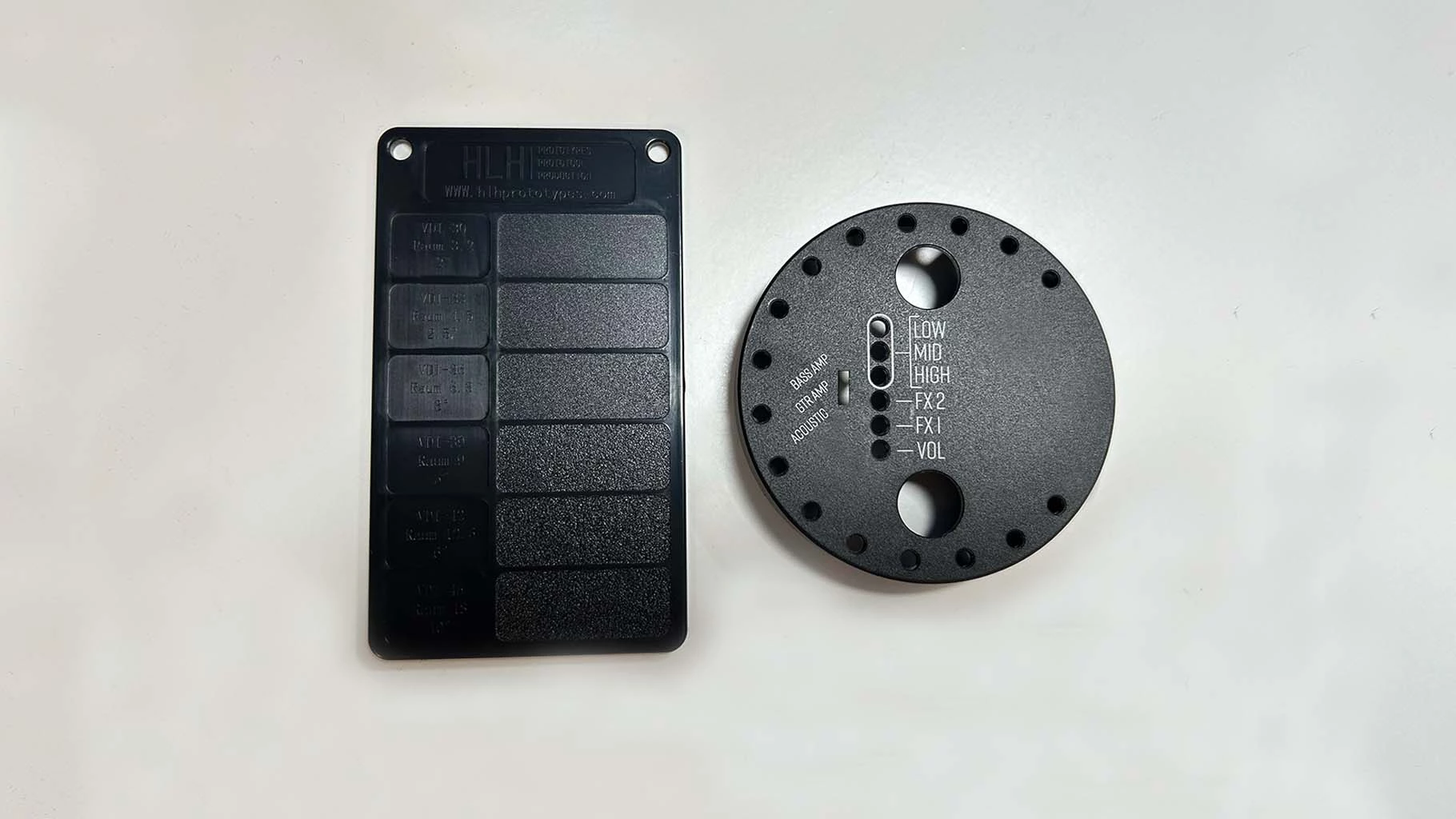

Surface Finish Standards
SPI A-2 Mirror Polish to Mold-Tech Textures.
From high-gloss optical clarity to industrial VDI textures, we provide the exact aesthetic and tactile surface required for your application.
Integrated Prototyping Solutions

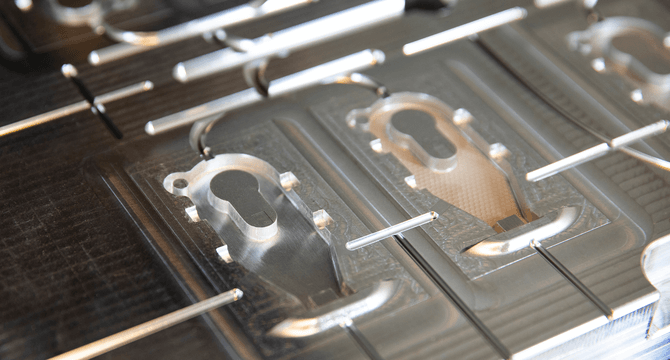

01. DFM & Engineering
Every project starts with a detailed technical audit to solve complex molding challenges: Wall thickness optimization to eliminate sink marks, Scientific gate placement for balanced filling, and Draft analysis to ensure surface texture integrity.
02. Material Validation

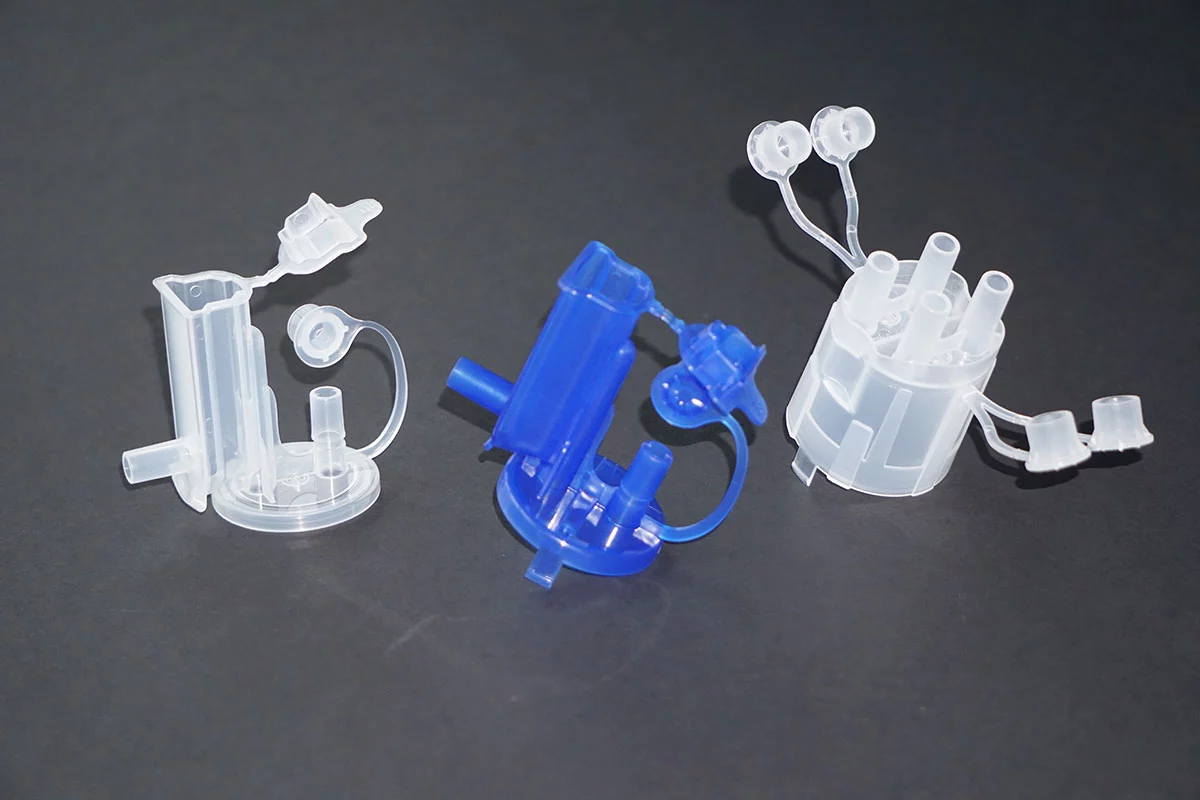

Using production-grade resins for functional testing: Medical (Biocompatibility validation), Aerospace (UL94-V0 & High strength-to-weight), and Robotics (Mechanical toughness and wear resistance).
03. Bridge Production

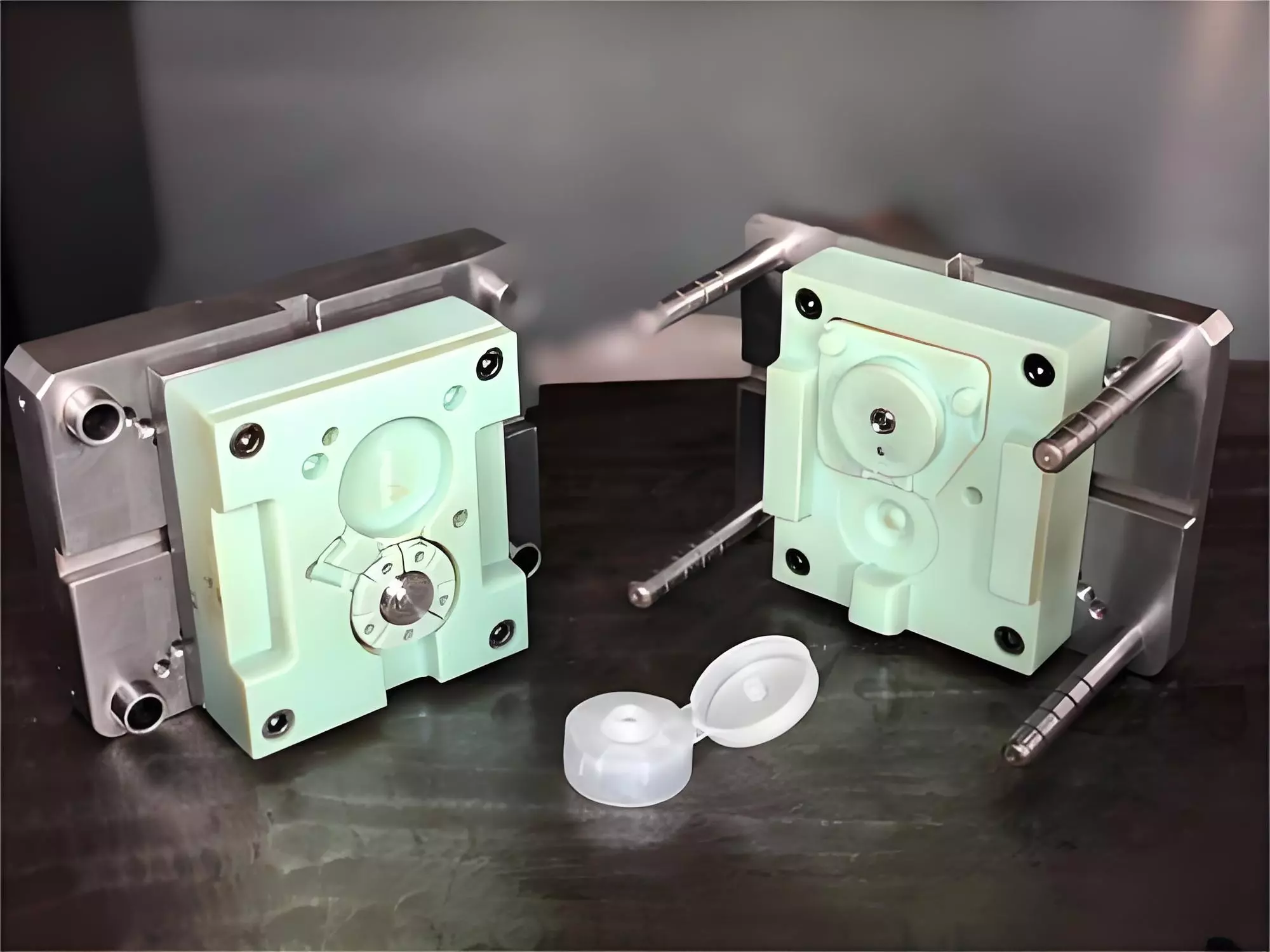

Scalable rapid prototype injection molding: Low-volume runs (25 to 500+ functional parts) and durable Bridge Tooling using aluminum or pre-hardened steel for up to 5,000+ cycles.
Beyond Standard Molding
Post-Molding CNC Machining
Leveraging our heritage in high-precision CNC machining to achieve ±0.01mm (0.0004″) tolerances for critical bearing seats or custom threads that are unreachable by standard molding processes.
Rigorous Quality Assurance
We provide First Article Inspection (FAI) reports and full material COA certifications for complete traceability in medical and aerospace applications.
Secondary Ops: Ultrasonic Welding, EMI Shielding, & Hardware Assembly.
Prototype Molding Services (FAQ)
Q: How do you handle high-temperature or abrasive materials like PEEK or Glass-Filled Nylon?
A: We use specialized mold steels (like H13 or S7) and high-temp oil heaters to manage thermal expansion. Our injection units are equipped with wear-resistant bimetallic barrels to handle glass-filled resins without contamination.
Q: Who owns the mold, and how is maintenance handled for bridge production?
A: You own the mold. Once the tooling is paid for, it is your asset. For bridge production (up to 5,000+ cycles), we provide lifetime mold maintenance at no extra cost while the tool remains in our facility.
Q: What if we need a design iteration after the T1 sample?
A: We design our prototype molds with "steel-safe" areas whenever possible. Minor modifications can often be done quickly in our in-house CNC shop, saving you the cost of a new tool.
Q: Can you guarantee tolerances for complex geometries in Medical/UAV apps?
A: For critical features, we combine molding with secondary CNC machining to reach ±0.01mm. Every critical dimension is verified via CMM and documented in the FAI report provided with your samples.
Q: Do you support overmolding or insert loading for robotic sensors?
A: Yes. We have extensive experience in insert molding (metal-to-plastic) and multi-material overmolding. We can manually or automatically load sensors and custom hardware during the cycle.
Q: How do you verify material authenticity (e.g., medical grade)?
A: We provide original Material Certifications (COA) for every batch. For regulated industries, we maintain full lot traceability to ensure the resin matches your exact specification.
Ready to Move from Design to Production?
Upload your STEP/IGS files for a 24-hour technical DFM review. Our engineers will evaluate your design for moldability, precision, and cost-efficiency.
Get a Technical Quote & DFM Analysis
